MIGmatic™ M-Series
Air-Cooled MIG (GMAW) Welding Guns
Quick Specs
- Rated Output M-100: 100 A, M-150: 150 A
- Duty Cycle 100% with CO2 gas, 60% with mixed gas
- Net Weight 3.2–6.0 lb. (1.5–2.7 kg)
Industrial Applications
- Auto body
- Fabrication
- Hobby
- Maintenance and repair
Processes
- MIG (GMAW)
- Flux-cored (FCAW)
Key Features
Three-piece nozzle construction extends nozzle life by reducing wear and helps prevent rocking of nozzle on contact tip adapter.
Interchangeable contact tips help reduce parts inventory.
Brass contact tip adapter helps prevent galling, sticking and stripping of threads.
Steel spring strain relief protects power cable from wear and helps prevent liner from kinking, allowing better wire feedability.
360-degree rotatable gooseneck permits trigger activation with either the finger or thumb.
Interchangeable monocoil liners help reduce parts inventory and are available in most wire sizes.
Specifications
| Model | Stock No. | Cable Length | Rated Output | Duty Cycle | Standard Wire Size | Weight |
|---|---|---|---|---|---|---|
| M-100 | 248282 | 10 ft. (3 m) | 100 A | 100% with CO2 gas, 60% with mixed gas | .030–.035 in. (0.8–0.9 mm) | 3.2 lb (1.5 kg) |
| M-150 | 249039 | 10 ft. (3 m) | 150 A | 100% with CO2 gas, 60% with mixed gas | .030–.035 in. (0.8–0.9 mm) | 4.4 lb (2.0 kg) |
| 249040 | 12 ft. (3.7 m) | 4.7 lb (2.1 kg) | ||||
| 249041 | 15 ft. (4.6 m) | 6.0 lb (2.7 kg) |
M-Series Gun Consumable Kits
234607 .023/.025 in (0.6 mm) 234608 .030 in (0.8 mm) 234609 .035 in (0.9 mm) For M-100 and M-150 MIG guns. Kits include ten contact tips, one contact tip adapter, one standard nozzle and a consumable storage box. Contact Tips (10 per package) 087299 .023/.025 in. (0.6 mm) 000067 .030 in. (0.8 mm) 000068 .035 in. (0.9 mm) 000069 .045 in. (1.2 mm) Contact Tip Adapter (2 per package) 169716 Nozzle (2 per package) 246372 1/2 in. ID, flush 15 ft. Monocoil Replacement Liners 194010 .023/.025 in. (0.6 mm) 194011 .030–.035 in. (0.8–0.9 mm) 194012 .035–.045 in. (0.9–1.2 mm)
AccuLock MDX Conversion Kit for MIGmatic M-Series Guns 1880269
030/.035 in. (0.8/0.9 mm) AccuLock MDX nozzles and tips. Kit contains one conversion diffuser (1070115), five contact tips (T-M030), five contact tips (T-M035) and one nozzle (NS-M1200C)

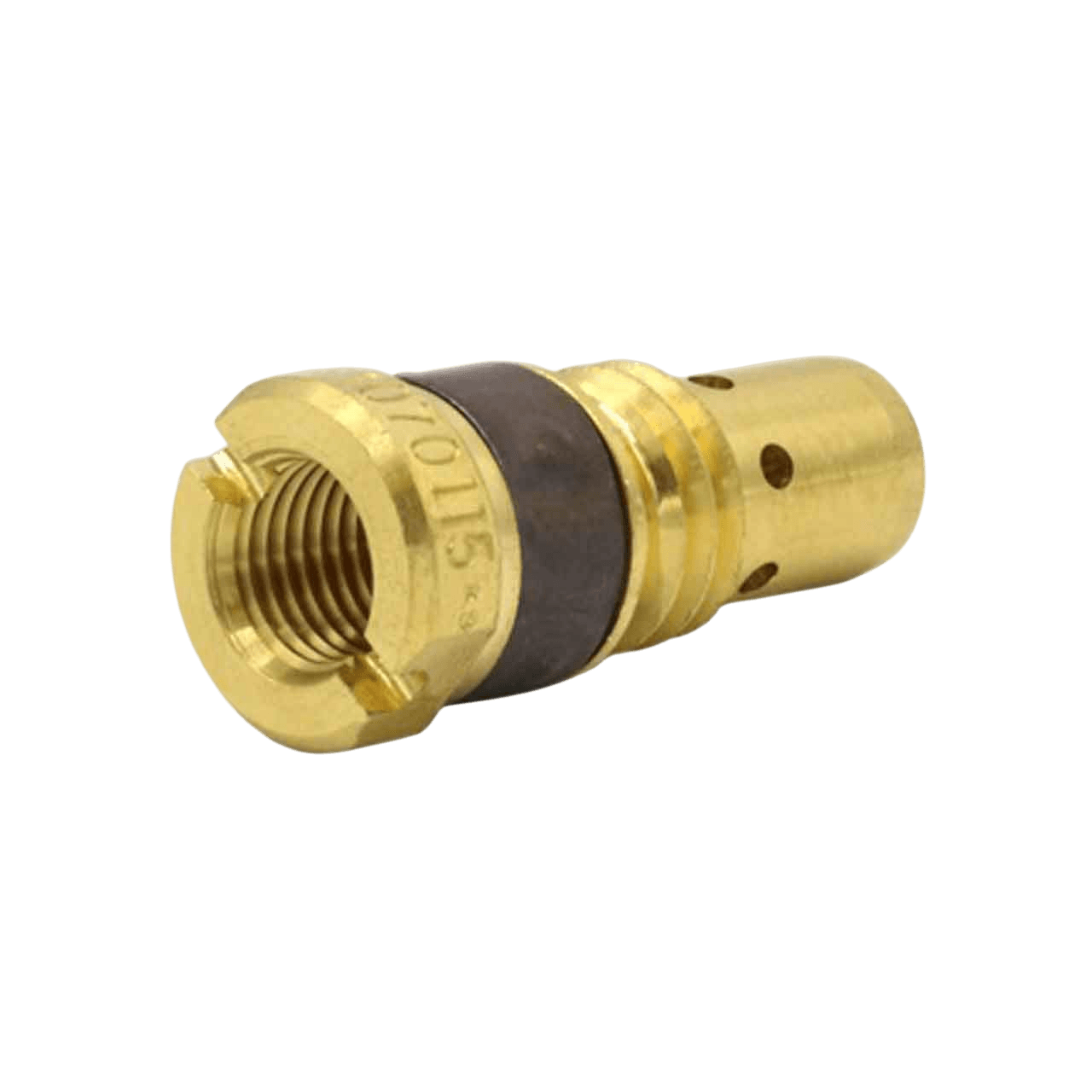

Conversion Diffuser 1070115
Converts M-100 and M-150 MIGmatic M-Series guns to use AccuLock nozzles and contact tips. Contact Tips (10 per package) T-M023 .023 in. (0.6 mm) T-M030 .030 in. (0.8 mm) T-M035 .035 in. (0.9 mm) T-M045 .045 in. (1.2 mm) T-M047 3/64 in. (1.2 mm) Nozzles NS-M1200B Brass, 1/2 in. ID, flush NS-M1200C Copper, 1/2 in. ID, flush NS-MFLX Gasless nozzle 10 ft. Monocoil Replacement Liners LM1A-10 .023/.025 in. (0.6 mm) LM2A-10 .030–.035 in. (0.8–0.9 mm) LM3A-10 .035–.045 in. (0.9–1.2 mm)
